CYW-B2004A字符型液晶模块编程资料

文章出处:责任编辑:查看手机网址
扫一扫!CYW-B2004A字符型液晶模块编程资料扫一扫!
人气:-发表时间:2017-04-12 09:59【

                     CYW-B2004A字符型液晶模块编程资料

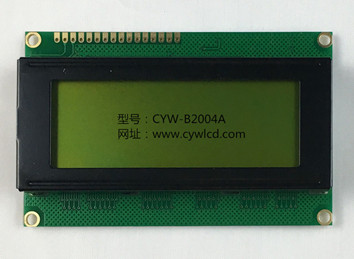

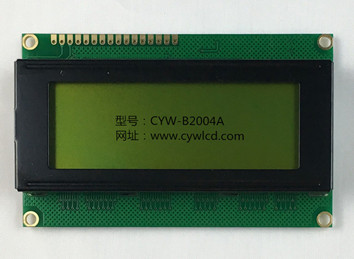

深圳驰宇微CYW-B2004A字符型液晶模块现用驱动ICSPLC780D,与KS0066是兼容的。大部分字符型液晶模块都用SPLC780D的芯片,希望下面的编程资料对工程师朋友有帮助:
RS              EQU    P3.3

RW              EQU    P3.1

E               EQU    P3.0

                ORG    0000H

                LJMP   MAIN



                ORG    0200H



mesg_num:   DB 20H,21H,22H,23H,24H,25H,26H,27H,28H,29H,2AH,2BH,2CH,2DH,2EH,2FH,30H,31H,32H,33H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char:  DB 34H,35H,36H,37H,38H,39H,3AH,3BH,3CH,3DH,3EH,3FH,40H,41H,42H,43H,44H,45H,46H,47H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H



mesg_num1:  DB 48H,49H,4AH,4BH,4CH,4DH,4EH,4FH,50H,51H,52H,53H,54H,55H,56H,57H,58H,59H,5AH,5BH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char1: DB 5CH,5DH,5EH,5FH,60H,61H,62H,63H,64H,65H,66H,67H,68H,69H,6AH,6BH,6CH,6DH,6EH,6FH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H



mesg_num2:  DB 70H,71H,72H,73H,74H,75H,76H,77H,78H,79H,7AH,7BH,7CH,7DH,7EH,7FH,80H,81H,81H,82H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char2: DB 83H,84H,85H,86H,87H,88H,89H,8AH,8BH,8CH,8DH,8EH,8FH,90H,91H,92H,93H,94H,95H,96H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H



mesg_num3:  DB 97H,98H,99H,9AH,9BH,9CH,9DH,9EH,9FH,0A0H,0A1H,0A2H,0A3H,0A4H,0A5H,0A6H,0A7H,0A8H,0A9H,0AAH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char3: DB 0ABH,0ACH,0ADH,0AEH,0AFH,0B0H,0B1H,0B2H,0B3H,0B4H,0B5H,0B6H,0B7H,0B8H,0B9H,0BAH,0BBH,0BCH,0BDH,0BEH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H



mesg_num4:  DB 0BFH,0C0H,0C1H,0C2H,0C3H,0C4H,0C5H,0C6H,0C7H,0C8H,0C9H,0CAH,0CBH,0CCH,0CDH,0CEH,0CFH,0D0H,0D1H,0D2H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char4: DB 0D3H,0D4H,0D5H,0D6H,0D7H,0D8H,0D9H,0DAH,0DBH,0DCH,0DDH,0DEH,0DFH,0E0H,0E1H,0E2H,0E3H,0E4H,0E5H,0E6H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H



mesg_num5:  DB 0E7H,0E8H,0E9H,0EAH,0EBH,0ECH,0EDH,0EEH,0EFH,0F0H,0F1H,0F2H,0F3H,0F4H,0F5H,0F6H,0F7H,0F8H,0F9H,0FAH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char5: DB 0FBH,0FCH,0FDH,0FEH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H



mesg_num6:  DB 0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH,0FFH

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

mesg_char6: DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H

            DB 20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H,20H





CGRpatn:        DB   1FH,1FH,1FH,1FH,1FH,1FH,1FH,00H

                DB   01H,02H,04H,08H,10H,08H,04H,00H

                DB   15H,15H,15H,15H,15H,15H,15H,00H

                DB   0AH,0AH,0AH,0AH,0AH,0AH,0AH,00H



                ORG    1400H

MAIN:           MOV     SP, #30H

                ACALL   PonInit         ; initialize subroutine





                MOV     DPTR, #CGRpatn  ; set address for pattern

                MOV     A, #04H         ; No. of character to be initialise

                ACALL   CGRinit         ; Write pattern into CGRAM



START:          MOV     DPTR, #mesg_num

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_num1

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char1

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_num2

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char2

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_num3

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char3

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_num4

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char4

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_num5

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char5

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_num6

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                MOV     DPTR, #mesg_char6

                ACALL   mesg_out

                MOV     R4, #0A0H

                ACALL   delayXms



                LJMP    start

; ***********************************************************************

;   routine     : mesg_out

;

;   Description :

;

; ***********************************************************************

mesg_out:       MOV     R4,#20

                MOV     A,#80H

                ACALL   WIR8

m_out1:         CLR     A

                MOVC    A, @A+DPTR

                ACALL   WDR8

                INC     DPTR
上面的资料仅供参考,详细的资料请参考IC资料!
更多信息,请咨询深圳驰宇微科技工程师,联系方式如下:
蒋工Tel:+86-755- 29446830

Mobile:13640934827

http://www.cywlcd.com/cjwtj.html

http://map.baidu.com/?newmap=1&s=inf%26uid%3Da52aa43e5a4db9839fec2b79%26wd%3D%E9%A9%B0%E5%AE%87%E5%BE%AE%E7%A7%91%E6%8A%80%26all%3D1%26c%3D340&from=alamap&tpl=map_singlepoint

Add:深圳市龙华新区大浪街道华宁路伟华达工业园C1栋七楼
